ELICA induction hob with recycling hood NIKOLATESLA FIT 3Z 72 cm and KIT0180522 for direct back outlet

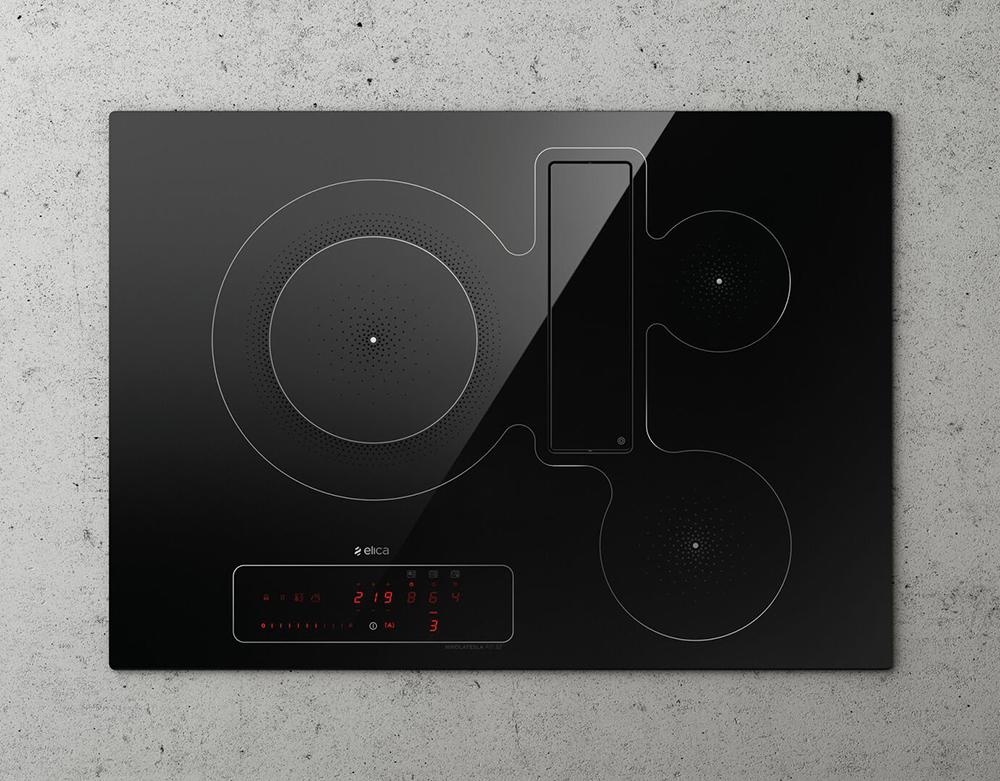

Nikolatesla Fit 3Z Elica is a first three zone extractor hob on the market. Whether cooking for family or friends, the large 30cm zone allows you to use any size cookware. The extraction core is completely hidden and can be activated with just a simple touch, and what’s more, thanks to the central slider, interacting with the appliance is even easier and more practical.

ASPIRATION SYSTEM
Dimensions: 72 x 51,5 x 26 cm
Recycling version
Finish Black Glass
Controls 4S+B slider touch control
Booster airflow 600 m3/h
Suction speed 5,1 m/s
Noise level 42 - 61 db(A)
Total absorption 160 W
Energy class A
Grease aluminium filter included

INDUCTION HOB:
9P+B slider touch control
Absorption 7,2 KW
Power limitation: 3,1 - 4,5 kW
Cooking zones: Ø300 mm - 2,5/3,6 kW / Ø180 mm - 2,1/2,5 kW, Ø140 mm - 0,9/1,35 kW, Ø180 mm - 1,4/2,1 kW

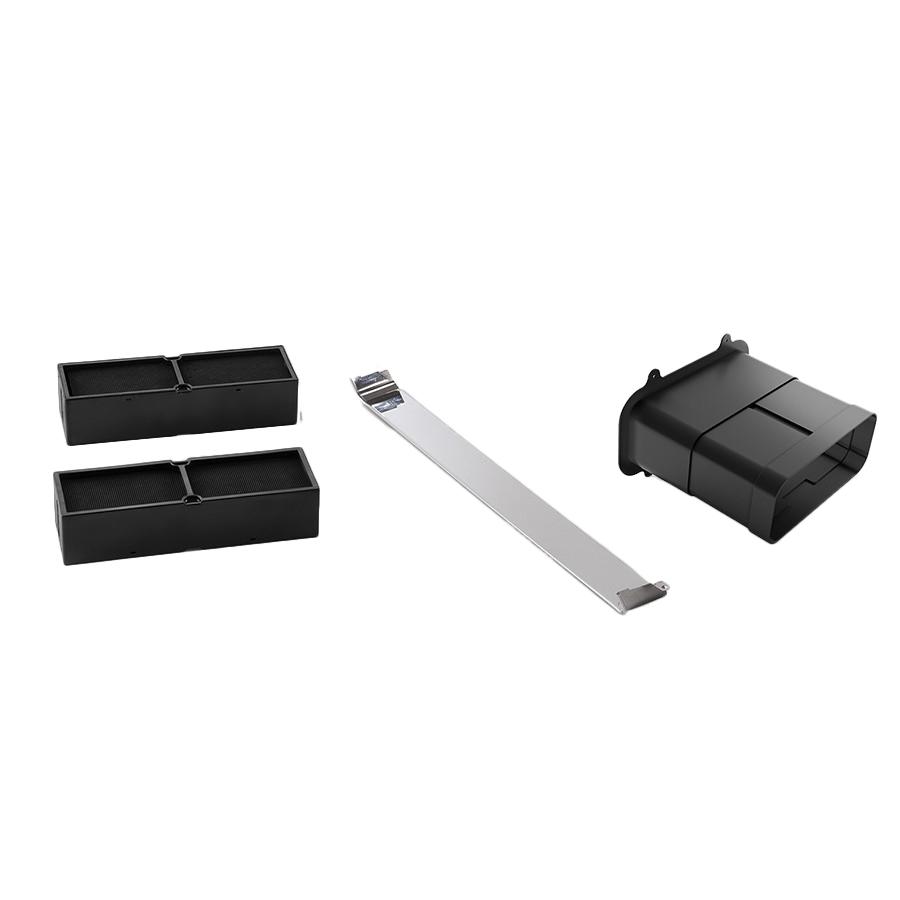

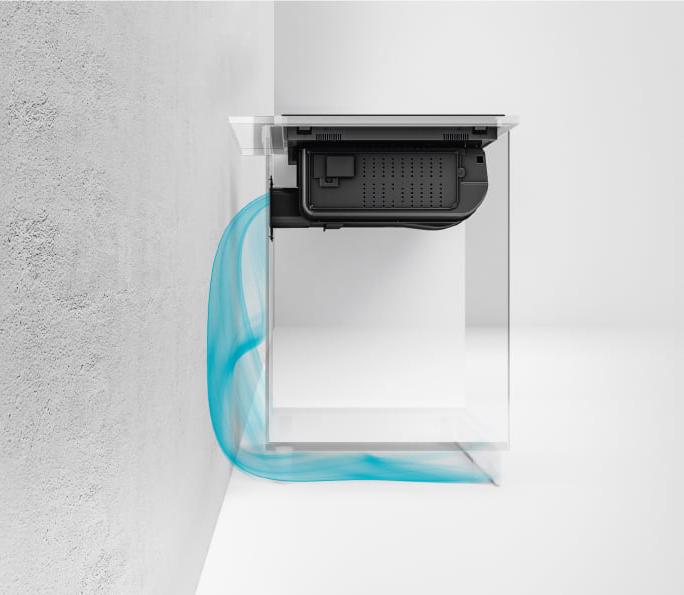

KIT0180522: Back outlet filter installation kit containing a telescopic outlet fitting, two HP regenerable ceramic filters and an aesthetic profile for the plinth. This kit allows the conversion of the product into filtering mode. The air flow is conveyed to the rear and left to flow, in the simplest possible way, inside the cavity between the wall and the cabinet without the aid of additional pipes.

Assembly instructions Elica Nikolatesla Fit 3Z
